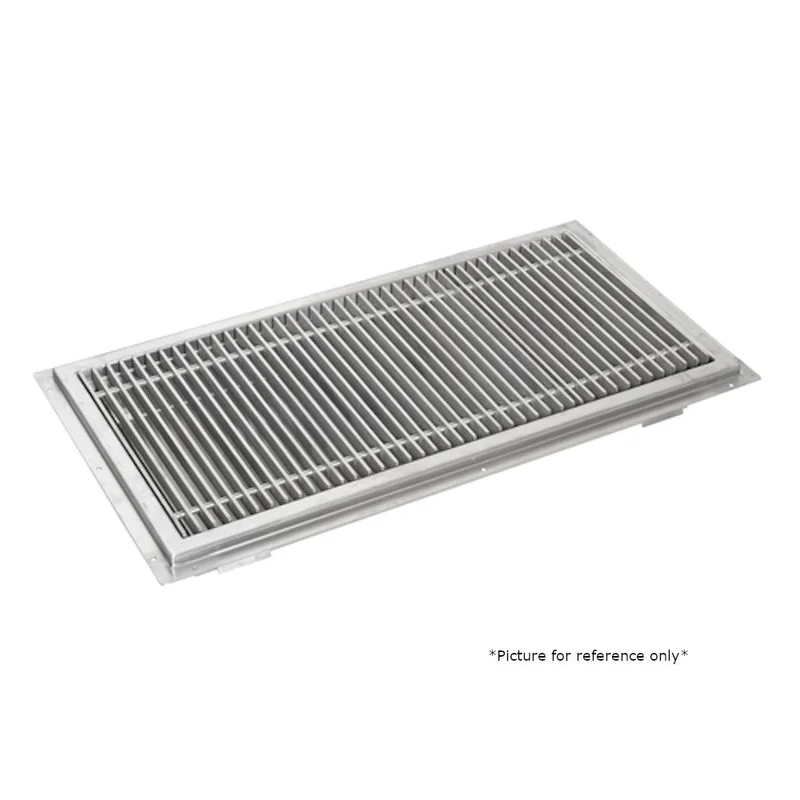

John Boos FTSG-1836 36″ W x 18″ D Floor Trough

Description

This John Boos FTSG-1836 Floor Trough Drain is designed to accommodate a 4″ O.D. diameter drain pipe 3.25″ long. It has a removable grate with 1/8″ stainless steel bards on 3/4″ centers. The Trough is made of 14 gauge, type 300 stainless steel. This is an extremely durable stainless steel, reducing the possibility of scratches and dents. It has a drainage grate with 1/4″ holes. The bottom has 5-degree breaks to ensure proper drainage. This FTSG-1836 is TIG welded with its exposed welds being polished to match the adjacent surfaces.

Features and Benefits:

• Accomodates a 4″ O.D. diameter drain pipe 3.25″ long
• Removable grate with 1/8″ stainless steel bars on 3/4″ centers
• 5-degree breaks in bottom for positive drainage towards drain
• Includes drainage grate with 1/4″ holes
• All TIG welded
• Exposed welds are polished to match adjacent surface
• 14 gauge, type 300 stainless steel construction

Specifications:

• Model: FTSG-1836
• Dimensions: 4″ H x 36″ W x 18″ D
• Approximate Weight: 85 lbs.
