Description

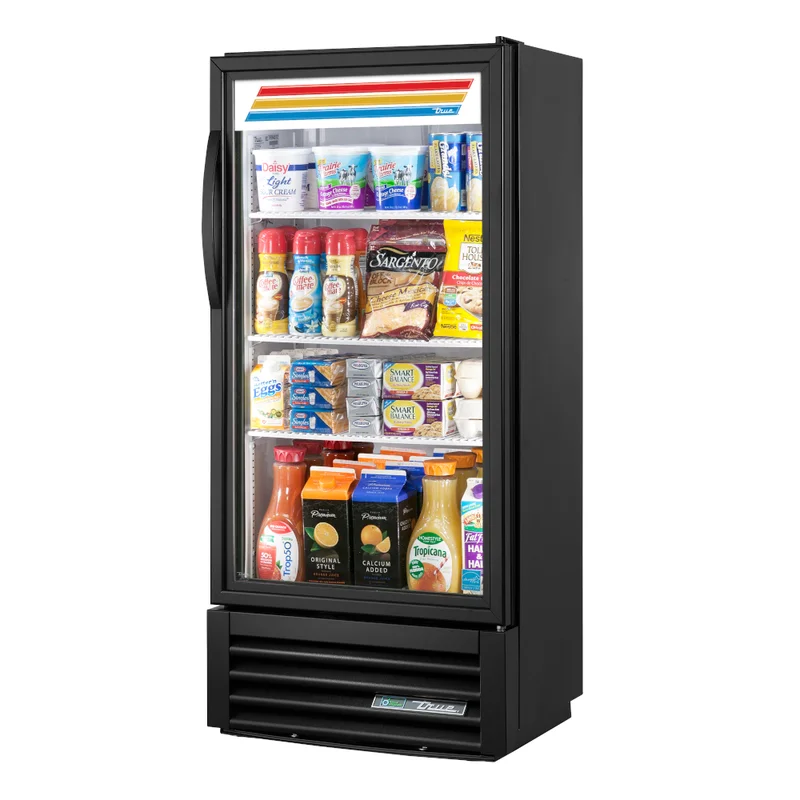

The True GDM-10SSL-HC~TSL01 attractively merchandises your products and encourages impulse buys with a “Low-E”, double pane thermal glass door and LED lighting. The refrigerated merchandiser has a durable, non-peel black laminated vinyl exterior and an NSF approved white aluminum interior liner and stainless steel floor.
The GDM-10SSL-HC~TSL01 uses the new environmentally friendly R290 hydrocarbon refrigerant. The energy efficient, factory balanced, refrigeration system holds 33°F to 38°F.
Specifications
- Model: GDM-10SSL-HC~TSL01
- Doors: 1
- Shelves: 3
- Electrical:
- 1/6 HP
- 115/60/1
- 2.0 Amps
- 5-15P NEMA plug & 9′ cord
- Dimensions: 24-7/8″ W x 18″ D x 53-1/2″ H
- Warranty: 3-year warranty on all parts and labor and an additional 2-year warranty on compressor (U.S.A only)
Standard Features
REFRIGERATION SYSTEM
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Bottom mounted condensing unit positioned for easy maintenance. “No stoop” lower shelf maximizes visibility by raising merchandised product to higher level.
CABINET CONSTRUCTION
- Exterior – non-peel or chip black powder coated cold rolled steel; durable and permanent.
- Interior – attractive, NSF approved, white aluminum liner with stainless steel floor.
- Insulation – entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Frame rail fitted with leg levelers.
- Door sign decal. Variety of decal options available.
DOOR
- “Low-E,” double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficiency technology.
- Door fitted with 12″ long integrated handle.
- Self-closing door. Positive seal, torsion type closure system.
- Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
SHELVING
- Three (3) adjustable, heavy duty PVC coated wire shelves 205/8”L x 121/2”D (524 mm x 318 mm). Four (4) chrome plated shelf clips included per shelf.
- Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2″ (13 mm) increments.
LIGHTING
- LED interior lighting, safety shielded.
MODEL FEATURES
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Convenient clean-out drain built in cabinet floor.
- Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
ELECTRICAL
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
